Product overview

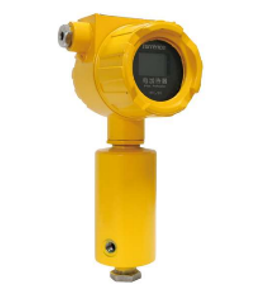

RS-HTC280 is the electric heater of the conductor, whose function is to heat the gas entering the conductor to avoid the problem of condensation, liquefaction, icing and other problems caused by the sharp reduction of temperature caused by gas heat absorption when there is a large pressure drop. Suitable for small flow drive heating.

Product characteristics

◆ Product model: RS-HTC280

◆ Heating medium: natural gas

◆ Maximum import pressure: 16.0MPa

◆ Rated voltage: 220V AC

◆ Rated power: 280W

◆ Ambient temperature: -40℃~+60℃

◆ Maximum surface temperature: 90℃

◆ Relative humidity: 25-95% (RH)

◆ Maximum allowable intake temperature: 60℃

◆ Explosion-proof grade: Ex d II C T4 Gb

◆ Explosion-proof Certificate number: CNEx20.5170X

◆3C Certificate number: 2022312312000154

◆ Scope of application: small flow gas heating

◆ Control output: Relay output AC250V 3A (resistive load)
